Evaluation of errors in non-contact measuring in accordance with standards of NARIMUNE
Category:
WHAT'S NEWS
The requirements of ISO 10360-8 and JISＢ7440-8

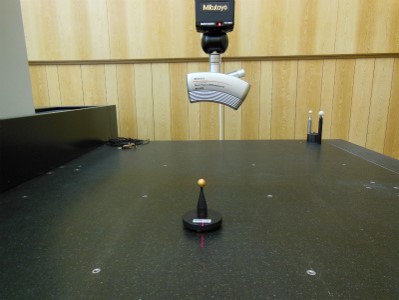

1.Probing error (Shpere, dia., R.)
2.Length measurement error
3.Flat shape measurement error
4.Rotational position error

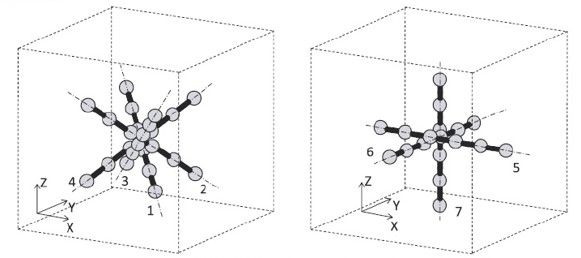

For 1.Probing error and 4.Articulated location value

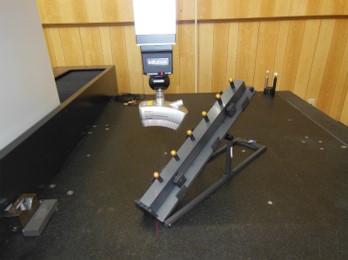

For 2. Length measurement error

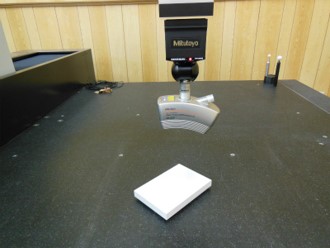

For 3. Flat shape measurement error

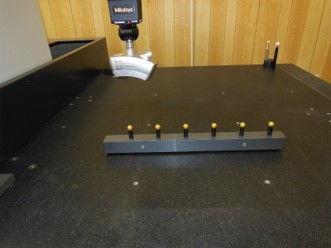

Master gauge for length measurement
(distance between the spheres)
The sphere portion: φ20 : SUJ2 (titanium coating)
The main body: Ceramics (C101R)
Thermal expansion rate: 2.3 (X 10^-6/K)))
(distance between the spheres)
The sphere portion: φ20 : SUJ2 (titanium coating)
The main body: Ceramics (C101R)
Thermal expansion rate: 2.3 (X 10^-6/K)))

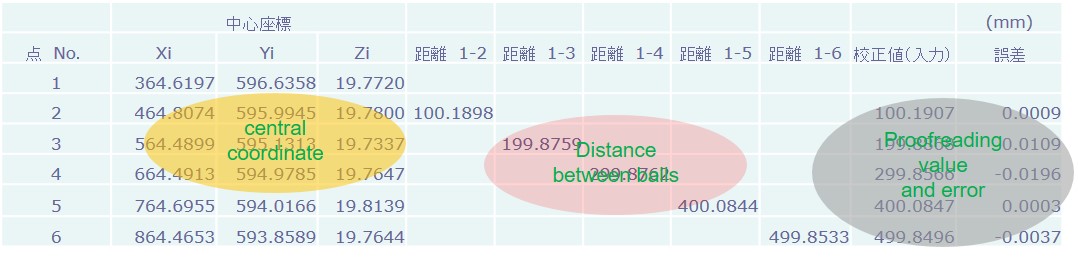

An evaluation example
